Data Debugging
VATSIM Radar provides ways to debug Data Debugging.
Setting up prebuilt
This section will help you to reduce load on your machine, skipping whole development server setup.
- Follow steps until
Getting it done
inside Setting Up Guide - Instead of running project directly, run
yarn start:next
oryarn start:prod
for project to start - Check it out on
http://localhost:8080
You can also setup project using docker compose up
from guide above, but that will also setup development server, which is much heavier.
If you only need data testing, it is recommended to use yarn start:*
instead of docker compose up
to use prebuilt image.
Raw Data Debugging

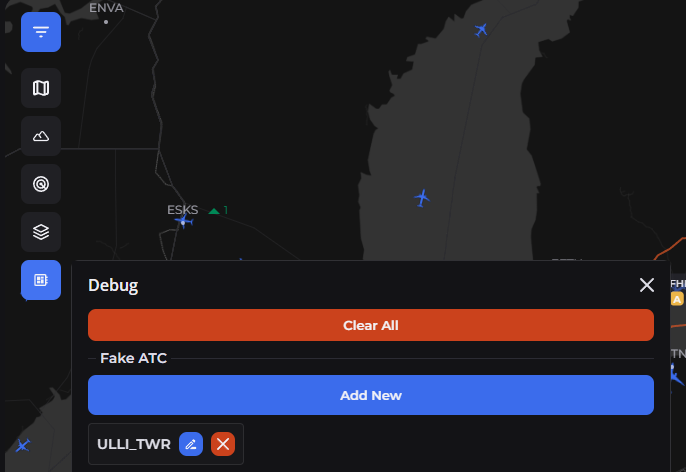

First, you should notice new section in map settings dropdown.
Open it.
VATSpy
Modify and upload VATSpy.dat
and Boundaries.geojson
from original repo.
SimAware TRACON
You have 2 options:
- Download latest release
TRACONBoundaries.geojson
and modify, then upload it - Use
compiler.js
from repo to get this file locally, then to upload it
VATGlasses
Minify whole repo to anyname.zip
file and upload it.
Fake ATC
To test how controllers are displayed, you can add fake ATC:
- CID: auto-generated, you can change it on creation (once)
- Name: any controller name, defaults to CID
- Callsign: controller's callsign, no validation here, be careful
- Frequency: can be random unless you need to test VATGlasses
- Facility/Rating: can be random
- ATIS lines: optional
Hit Save
button - controller will appear on map shortly.
Pull Requests Debugging
You can debug VATSpy or SimAware TRACON Pull Requests.
GEOJSON Debugging
This is available without local setup.
Open:
- VATSpy:
https://vatsim-radar.com/data/vatspy/PULLREQUEST/compare
- SimAware TRACON:
https://vatsim-radar.com/data/simaware/PULLREQUEST/compare
Where PULLREQUEST is Pull Request ID (ex. https://github.com/vatsimnetwork/vatspy-data-project/pull/123
- ID is 123.
Data Debugging
Enter PR ID
in Debug window mentioned above and click "Save". Wait a few seconds.
Some notes
- Clear buttons are always highlighted, even if you didn't upload anything
- Files are saved under src/data/custom. You can even edit them directly, if you want! Just don't forget to set correct permissions, since Docker can usually mess with them and you won't have edit access
